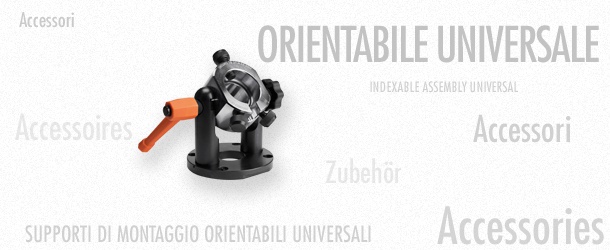

Indexable assembly universal support

Head fixture can be set in two position, vertical and horizontal, for easy access to the cutting tool. The tapers protection is granted by two special NBR O-ring.

Body in steel, operating levers in thermoplastic material.
Can be mounted on work table with four screws.
The mounting fixtures must be fixed to a bench or to a tool cart.
Head fixture can be set in vertical and horizontal position.
1. Set screw for tools-shank HSK63A / HSK100A / BT40 / BT50 / SK40 / SK50 DIN69871 / ISO40 DIN2080
2. Safetry screw for “V” flange BT40 / BT50 / SK40 / ISO50 DIN2080
3. Safatry screw for “V” flange SK40 / SK50 DIN 69871
